The many faces of joy
The many faces of joy
Orbea

Orbea Gain M21E 1X 20mph E-Road Bike In Wine Red Carbon View/Titanium Gloss

$7,699.00
Size Guide
Orbea Gain M21E 1X 20mph E-Road Bike In Tanzanite Carbon View Matt/Carbon Raw Gloss Orbea Gain M21E 1X 20mph E-Road Bike In White Chic/Metallic Green Artichoke Gloss Orbea Gain M21E 1X 20mph E-Road Bike Custom Orbea Gain M21E 1X 20mph E-Road Bike In Infinity Green Carbon View Matt
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Shipping & Collection Dates

Estimated Shipping & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Shipping & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

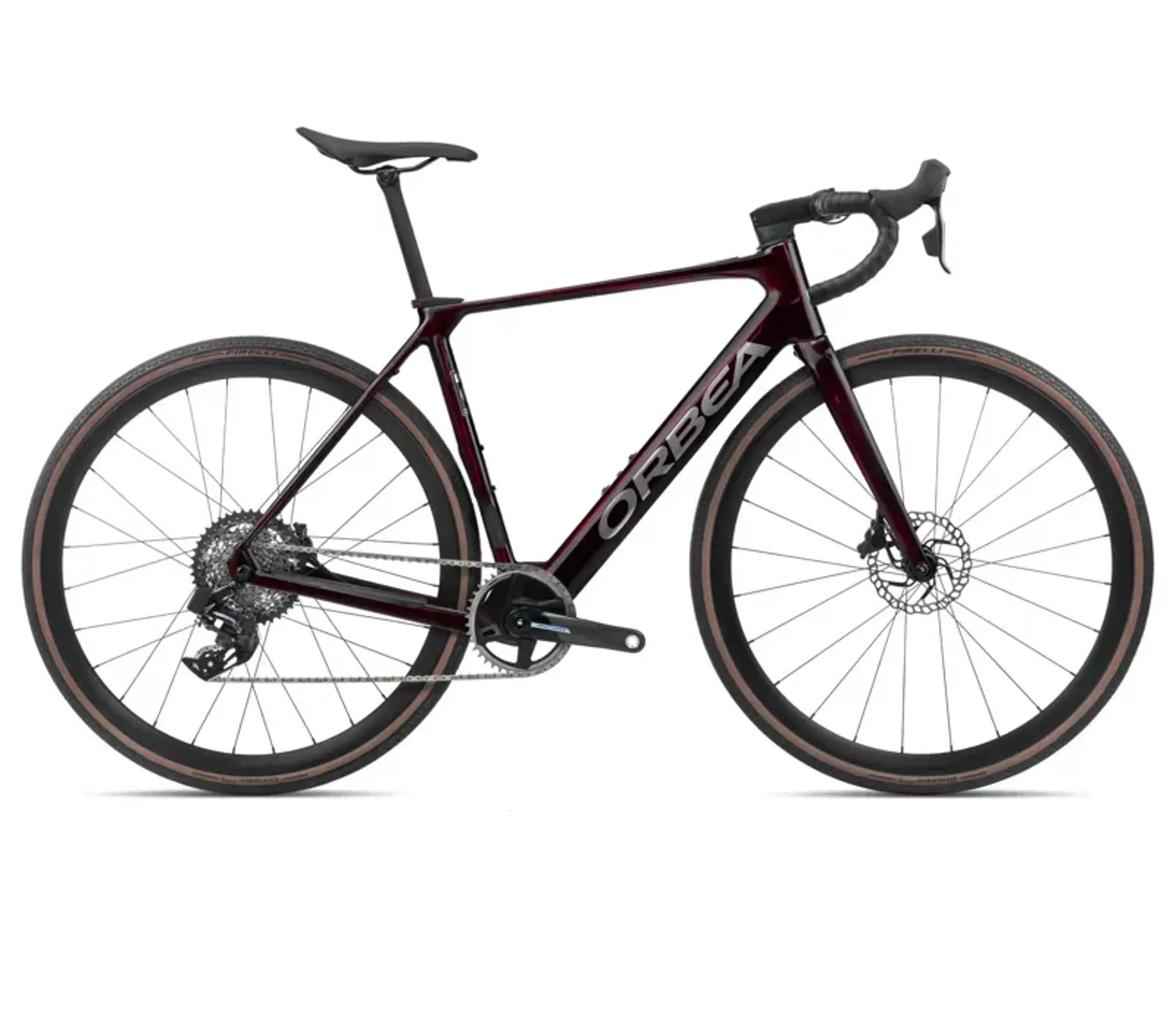

Orbea Gain M21E 1X 20mph E-Road Bike In Wine Red Carbon View/Titanium Gloss

Season:2024

Brand:Orbea

Code:R624TTCCCF

The many faces of joy

Rider and bike working in perfect synergy, you are breathing hard and your heart is pumping but you are in control and having fun. This isn’t about riding faster, it isn’t even about riding further, this is just about having more fun each and every time you ride.

Features:

  • 350WH Downtube - Investing the weight savings we made with the new Gain in a bigger battery allows us to increase the range and reduce the overall weight simultaneously. That means you can pretty much forget about the battery level unless you plan on climbing more than 4000m.
  • More capable than ever - Clearance for 35mm tires means that Gain matches your vision of e-road, even if that goes further than tarmac and onto some gravel.
  • ICR Plus - Cables are carefully guided along the best path under the stem and through the head tube, with no rub or rattle, and are optimized for both traditional and electronic shifting systems.
Technical Information
  • Frame
    Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disk, 700x35 max tire, BB386 EVO, Mahle X20 AMC plug.
  • Fork
    Gain OMR carbon fork, 700x35 maximun tire, Flat Mount disk, Thru Axle 12x100mm, thread M12x2 P1.
  • Steerer Tube
    FSA 1-1/2" Integrated Aluminum Cup.
  • Ebike Battery
    Mahle iX350 36V 353Wh.
  • Range Extender
    N/A.
  • Motor
    Mahle motor hub X20, ALC.
  • Display
    Mahle Pulsar One monochrome ANT+ LEV.
  • Charger
    Mahle Active Charger up to 4A.
  • Remote
    Mahle ONE Head Unit (BT/ANT+).
  • Remote2
    Mahle Handlebar Dual eShifter.
  • Crankset
    SRAM Force Dub Wide 40t.
  • Shifters
    SRAM Force AXS.
  • Cassette
    SRAM XG-1271 XPLR 10-44t 12-Speed.
  • Rear Derailleur
    SRAM Force XPLR AXS 12s.
  • Chain
    SRAM Force 12-Speed.
  • Handlebar
    OC Gravel GR31, Reach 70, Drop 110.
  • Stem
    OC Road Performance RP10, -8º.
  • Brakes
    SRAM Force AXS.
  • Brakes Configuration
    N/A.
  • Wheels
    Alloy, Tubeless, 700c, 21c.
  • Tires
    Pirelli Cinturato™ Gravel H 700x35c TLR.
  • Front Wheel Axle
    Orbea Thru Axle 12x100mm M12x2 P1 Lite.
  • Rear Wheel Axle
    Orbea Thru Axle 12x142mm M12x2 P1 Lite.
  • Seatpost
    OC Performance XP10 Carbon, 27.2mm, Setback 0.
  • Saddle
    Fizik Aliante R5.
  • Front Light
    Rear position light, on saddle clamp, COB Led, On/Off, 12 Lumen. STVZO.
  • Handlebar Tape
    Orbea Anti-Slippery/Shock Proof.
