40-Series ZeroStack | External Cup Complete for 49mm Head-Tube, 1-1/8" Straight Steerer
40-Series ZeroStack | External Cup Complete for 49mm Head-Tube, 1-1/8" Straight Steerer
Cane Creek

Cane Creek 40 Series 0-Stack EXT-Cup 1-1/8 49mm Headset in Black

$52.99 $90.00 41% off
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Shipping & Collection Dates

Estimated Shipping & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Shipping & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

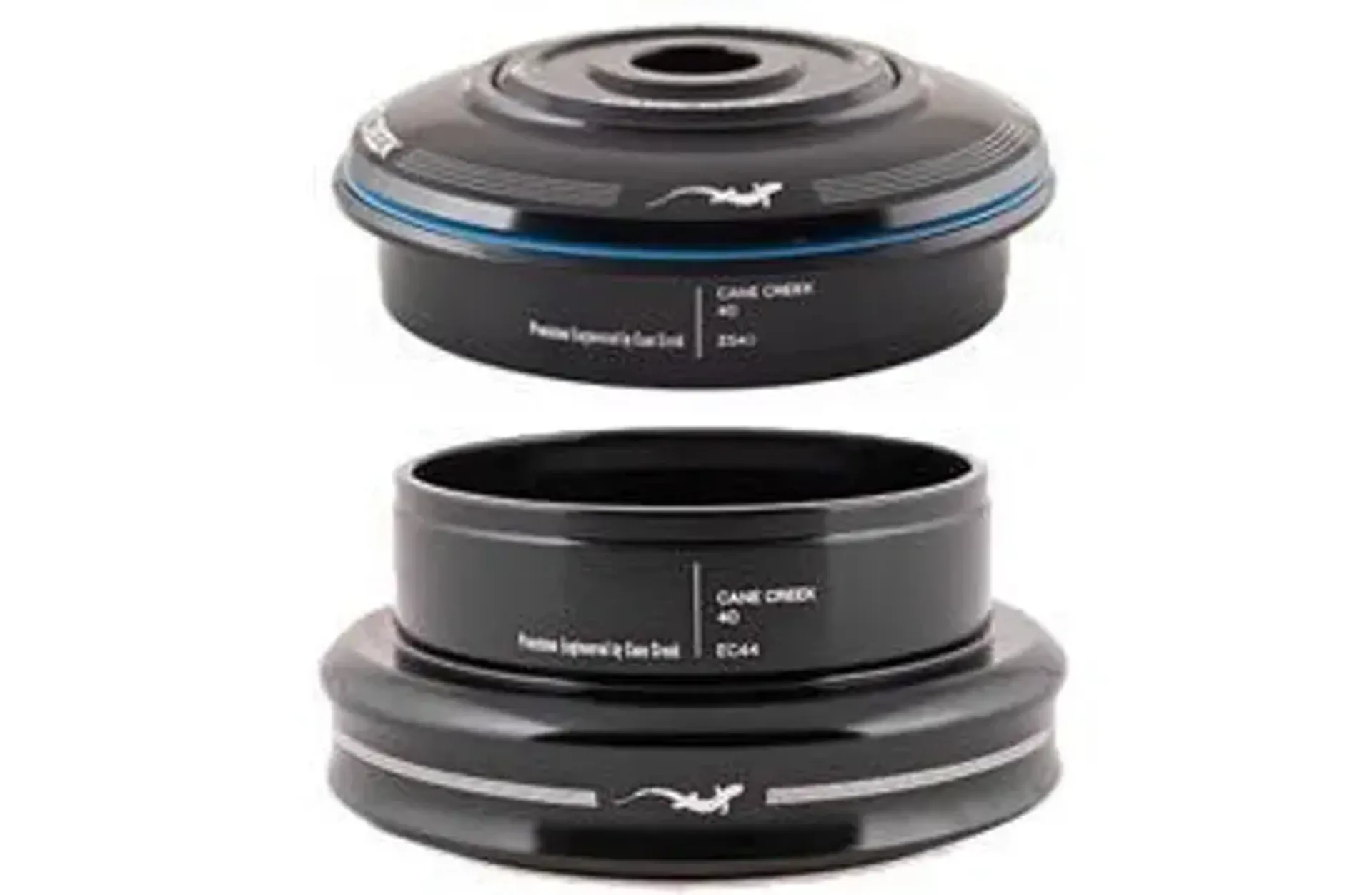

Cane Creek 40 Series 0-Stack EXT-Cup 1-1/8 49mm Headset in Black

Brand:Cane Creek

Code:301070

40-Series ZeroStack | External Cup Complete for 49mm Head-Tube, 1-1/8" Straight Steerer

The 40-Series sets the standard for performance, durability and value. Drawing from the Premium 110-Series Design, the 40-Series incorporates all the features necessary for a durable, light-weight, long-lasting headset.

To make it easier, Cane Creek developed consistent graphics, interchangeable parts and over 40 configurations to meet almost every need. Sold in straight and tapered assemblies or tops and bottoms, Cane Creek's 40-Series offers the largest fitment range of any headset line on the market. Precision engineered by Cane Creek in Fletcher, NC.

Features:

  • Cups and Covers: 6061 T-6 Aluminum
  • Crown Race: Durable steel crown race with low-friction face seals
  • Compression Ring: Aluminum captured compression ring
  • Interlok®: Interlok® spacer compatible
  • Compatibility: Internal parts are cross-compatible across the 10, 40 and 110 series
  • Stack Heights: Consistent top and bottom stack heights
    External Cup (EC) – 16mm Top, 12mm Bottom
    ZeroStack (ZS) - 8mm or 15mm Top, 4mm Bottom
    Integrated (IS) – 9mm or 15mm Top, 1mm Bottom
  • Warranty: 1 year

Specifications:

  • Headset Configuration: Complete
  • SHIS: ZS49/28.6 | EC49/30
  • Top Type: ZeroStack
  • Top Head Tube Inside Diameter: 49.61mm
  • Stem Clamp Diameter: 28.6mm
  • Top Stack Height: 4mm
  • Bottom Type: External Cup
  • Bottom Head Tube Inside Diameter: 49.61mm
  • Crown Race Seat Diameter: 30.015mm
  • Crown Race Type: Steel, Face-Sealed
  • Bottom Stack Height: 12mm
  • Material: AL-6061
  • Bearing Type: Black Oxide, Sealed
  • Product Weight: 150g
  • Part Number: BAA0601K
