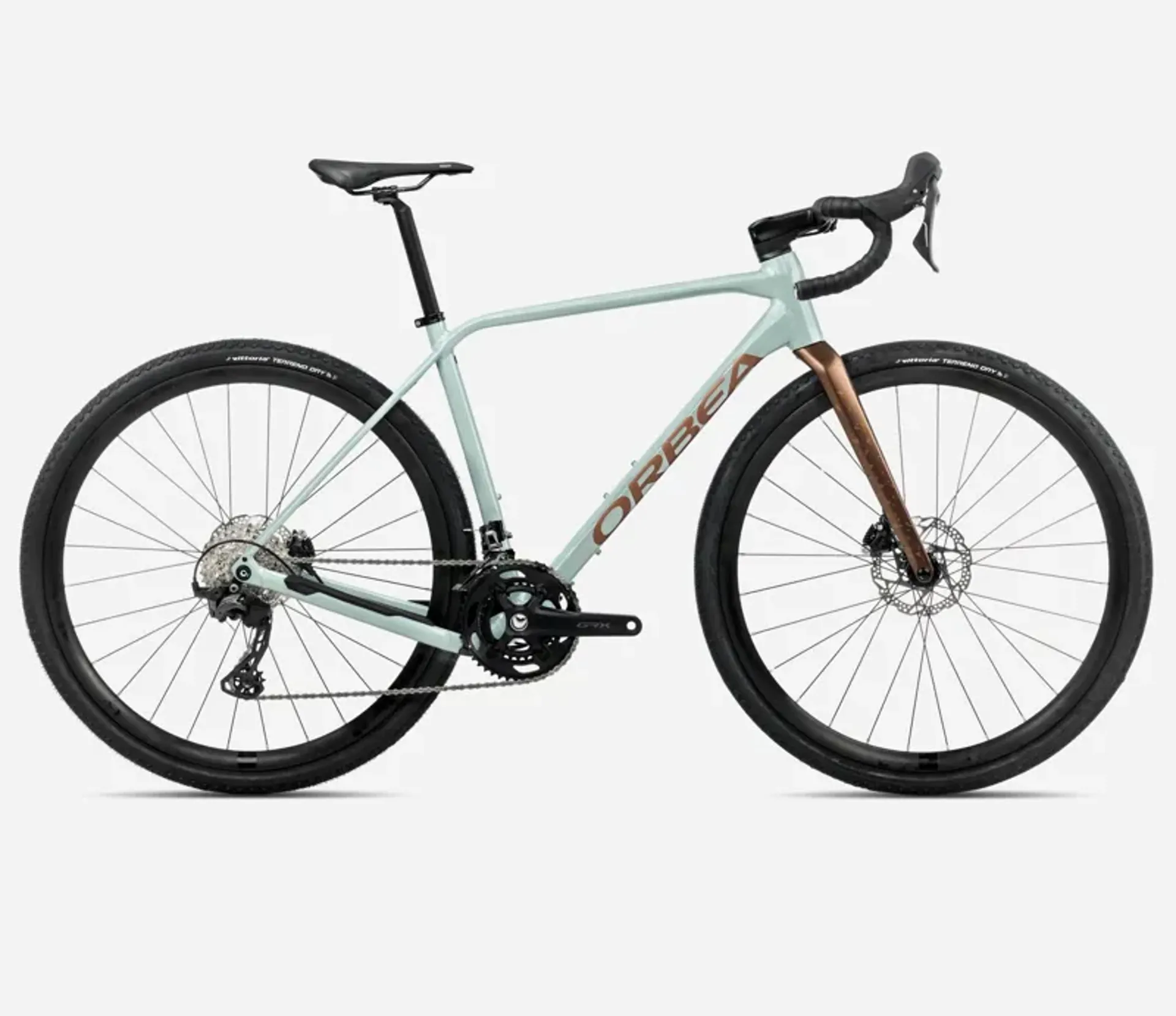

Orbea Terra H30 Gravel Bike In Blue Stone Gloss/Copper Matt

Season:2025

Brand:Orbea

Code:S143TTCCDH

Gravel from the ground up

Designed from the ground up for gravel, Terra isn't a repurposed road bike or a slimmed down mountain bike. Add comfort to your road adventures, finally discover where that dirt trail leads or let your trips spread overnight. There is a wide world out there and Terra is ready to explore it with you.

Features:
  • Tire clearance - Terra can be mounted with 700c x 45 tires for speed and efficiency on dirt roads, or with 650b x 50 treads for extreme durability and high-volume comfort if you need a bit more traction.
  • Drivetrain compatibility - Designing our frame from the ground up gave us the opportunity to tackle a problem which exist in many gravel frames. Namely giving a range of drivetrain options without compromising tire clearance.
  • Lockr - Carbon frame offers a storage area inside the downtube, hidden behind the water bottle cage, where there is space for the tube, pump or co2 cartridge, as well as a selection of tools.
Technical Information
  • Frame
    Orbea Terra Hydro disk, hydroformed triple butted aluminum, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube, MMS system
  • Fork
    Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1
  • Headset
    FSA 1-1/2" Integrated Aluminum Cup
  • Crankset
    Shimano GRX RX610 30x46t
  • Shifters
    Shimano GRX RX610
  • Cassette
    Shimano HG710 11-36t 12-Speed
  • Rear Derailleur
    Shimano GRX RX820
  • Front Derailleur
    Shimano GRX RX820
  • Chain
    Shimano M6100
  • Handlebar
    OC Gravel GR31-R, Rise 15, Reach 70, Drop 110
  • Stem
    OC Road Performance RP22, -5º
  • Brakes
    Shimano RX400 Hydraulic disk
  • Brakes Configuration
    N/A
  • Wheels
    Alloy, Tubeless, 700c, 21c
  • Tires
    Vittoria Terreno Dry Gravel 700x38c
  • Front Wheel Axle
    Orbea Thru Axle 12x100mm M12x2 P1 Solid
  • Rear Wheel Axle
    Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded
  • Seatpost
    SP 0.2 Carbon, 27.2mm, Setback 20
  • Saddle
    Prologo Akero AGX black rails size 155mm
  • Mudguard
    N/A
  • Handlebar Tape
    Orbea Eva
