Orbea

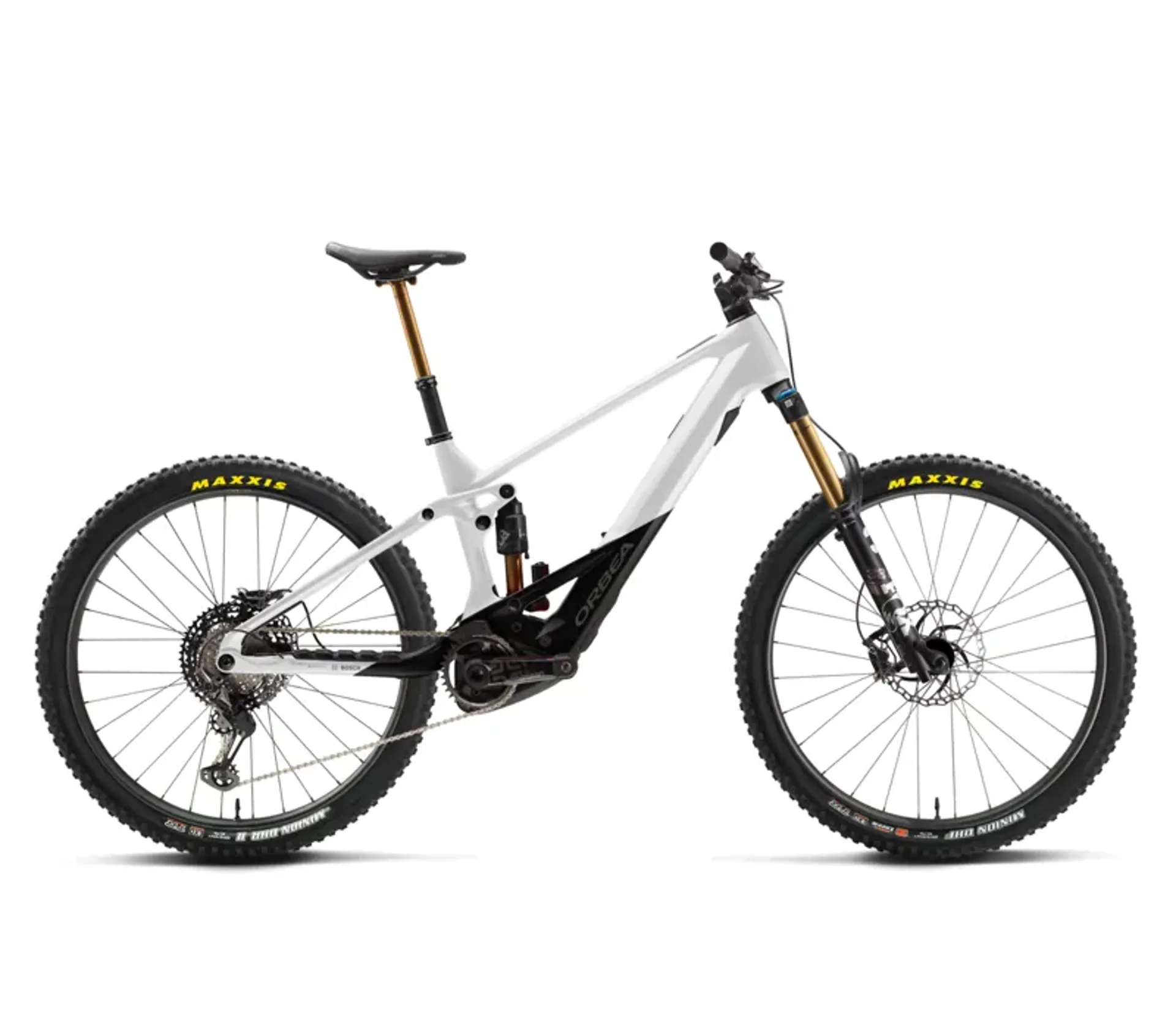

Orbea Wild M-LTD 20mph E-Mountain Bike Custom

$12,999.00
Size Guide
Orbea Wild M-LTD 20mph E-Mountain Bike In Halo Silver/Tanzanite Carbon View Matt Orbea Wild M-LTD 20mph E-Mountain Bike In Cosmic Carbon View Matt Gloss Orbea Wild M-LTD 20mph E-Mountain Bike In Carbon Raw Matt/Titanium
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Shipping & Collection Dates

Estimated Shipping & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Shipping & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

Orbea Wild M-LTD 20mph E-Mountain Bike Custom

Season:2024

Brand:Orbea

Code:R648TTCCCM

Beyond power

Orbea could tell you how Wild has the most powerful motor or battery capacity on the market. But we aren't going to. Wild takes us beyond such trivialities and into a world beyond power, where the ride is paramount, where the trails are endless and full of flow. Leave heavy, numb e-bikes behind and free your Wild.

Features:
  • SECURE BATTERY SYSTEM - Removing the battery for charging can sometimes be convinient, however it requires many structural compromises. Extra mounting hardware adds weight and complexity, and opening access to the battery either requires large holes in the frame or compromised downtube structures which add material, flex or raise the CoG Less structurally significant, but frustrating, can be rattling covers.
  • Sealed, Internal Cables - SIC system routes the cables along the best path through the headset, through internal guides and invisibly from the front to rear triangle via our Cable Pass.
  • Clean Cockpit - Looking at Wild´s clean cockpit you wouldn't think that you are on an ebike.The wireless remote connects to the display integrated in the top tube and all the other cables are routed via the headset, totally sealed and protected thanks to our SIC system.
  • 29er Traction With Optimized Chainstays - Integrating e-bike motors often causes an undesirable increase in chainstay length, resulting in less than natural handling. Often manufacturers use 27,5" wheels to help minimize this effect, even if this compromises the rear-wheel traction, which is critical for powerful e-bikes.
Technical Information
  • Frame
    Orbea Wild OMR 2023, 160mm travel, 29" wheels, Concentric Boost 12x148
  • Shock
    Fox Float X2 Factory Trunnion 2-Position Adjust Kashima custom tune 205x65mm
  • Fork
    Fox 38 Float Factory 170 Grip2 QR15x110 Kashima
  • Steerer Tube
    Alloy 1-1/2", Black Oxidated Bearing
  • Battery
    Bosch Powertube 625Wh Horizontal
  • Range Extender
    N/A
  • Motor
    Bosch Performance Line CX-R BDU3741
  • Display
    Bosch System Controller BRC3100
  • Charger
    Bosch Charger 4A (110V) BPC3410
  • Remote
    Bosch Mini Remote BRC3300
  • Chainring
    Sram XX Direct Mount 34t
  • Crank
    Sram XX for Bosch
  • Shifters
    Sram AXS Pod Ultimate
  • Cassette
    Sram XX-1297 Eagle 10-52t 12-Speed
  • Rear Derailleur
    Sram XX Eagle AXS
  • Chain
    Sram XX Eagle 12-Speed
  • Handlebar
    OC Mountain Control MC10 Carbon, Rise 20, Width 800
  • Stem
    OC Mountain Control MC10 Alu SL, 0º
  • Computer Mount
    OC Computer Mount CM-05, Garmin/Sigma
  • Brakes
    Sram Code Ultimate Hydraulic Disk
  • Brakes Configuration
    N/A
  • Wheels
    Oquo Mountain Control MC32LTD POWER
  • Tires
    Maxxis Assegai 2.50" WT FB 120 TPI 3C MaxxTerra EXO+ TR
  • Tires
    Maxxis Minion DHR II 2.40" WT FB 120 TPI 3C MaxxTerra Exo+ TR
  • Seatpost
    Fox Transfer Factory Kashima Dropper 31.6
  • Seatpost Lever
    Fox Transfer 1X
  • Saddle
    Fizik Terra Aidon X1 145mm
  • Grips
    Ergon GE10
  • Lights
    N/A
