URBAN LIGHTNESS - In the spirit of urban function and easy use, we have developed a new transportation concept designed for your life.
URBAN LIGHTNESS - In the spirit of urban function and easy use, we have developed a new transportation concept designed for your life.
Orbea

Orbea Vibe H10 EQ 20mph E-Road Bike In Metallic Infinity Green Gloss

$4,099.00
Size Guide
Orbea Vibe H10 EQ 20mph E-Road Bike In Metallic Burgundy Red Gloss Orbea Vibe H10 EQ 20mph E-Road Bike In Ivory White Gloss
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Shipping & Collection Dates

Estimated Shipping & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Shipping & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

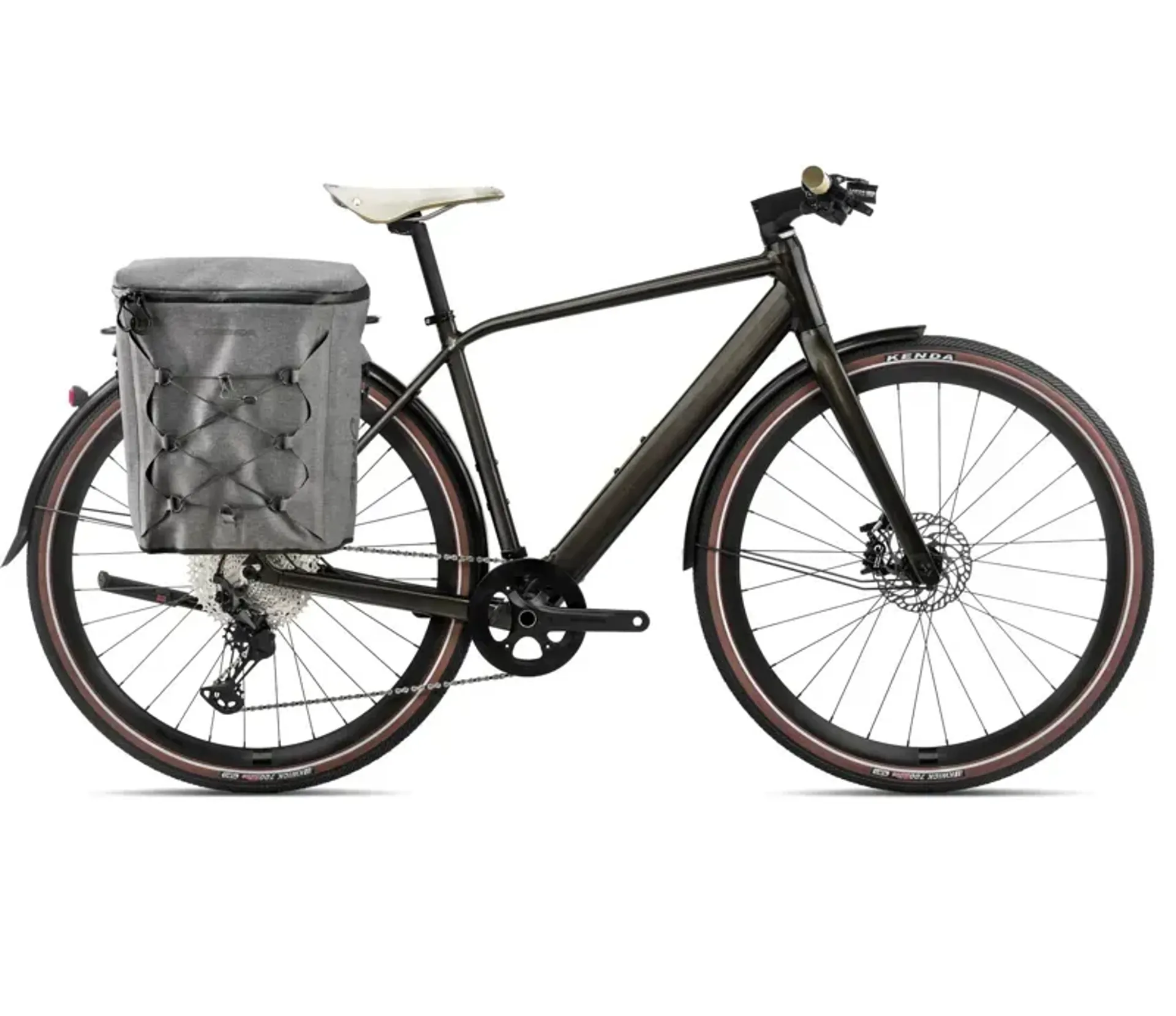

Orbea Vibe H10 EQ 20mph E-Road Bike In Metallic Infinity Green Gloss

Season:2024

Brand:Orbea

Code:R604TTCCW2

URBAN LIGHTNESS - In the spirit of urban function and easy use, we have developed a new transportation concept designed for your life.

A machine that is also a sophisticated accessory that echos your sense of style without overshadowing it - a sleek, fun, reliable tool that can be easily maneuvered into apartments or workplaces. Vibe is a bike that is light weight and enjoyable to ride - with a motor, battery and integrated electronics system designed for the fast-paced, grab-and-go lifestyle of the city.

Features:
  • ENOUGH ENERGY/MINIMALISM - Our Enough Energy concept is a new way to ride and Vibe is a new kind of ebike – minimalist, integrated and sleek with no bulky components to reduce the riding experience, bringing you closer to the sensation that less “e” can ultimately deliver more “bike”.
  • URBAN GEOMETRY - The Orbea Urban Geometry concept anticipates how riders will use bikes in the city. A more upright position for better vision and comfort keeps you feeling secure. Balance is perfect and steering is responsive without feeling too fast. A low-bar frame option makes it easy to step through the frame for those with less mobility or restrictive clothing.
  • CONECTIVITY AND GPS NAVIGATION WITH OFF LINE MAPS - Connect your smartphone to the EBikeMotion app and enjoy indepth system information plus ride and training details. Add your smartphone mount to Vibe´s handlebars and navigate new streets with ease thanks to the full turn-by-turn GPS with fully offline maps.
Technical Information
  • Frame
    Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disk, 700x45 maximum tire, 1" 1/2 semi head set, 41x86.5 Pressfit BB, carrier and fenders compatible.
  • Fork
    Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximum tire, flat mount disk mount, Thru Axle 12x100mm, Long mudguards compatible.
  • Steerer Tube
    Acros Alloy 1-1/2" Internal Cable Routing.
  • Battery
    Mahle 36V/6.9A 248Wh ANT+.
  • Range Extender
    N/A.
  • Motor
    Mahle motor hub X35 Plus.
  • Display
    N/A.
  • Charger
    Mahle X35.
  • Remote
    Mahle iWoc TRIO.
  • Crankset
    CR 0.1, Forged alloy, 42t, with Chainguard.
  • Shifters
    Shimano Deore M6100.
  • Cassette
    Sun Race CSMZ80 11-51t 12-Speed Metallic E-bike.
  • Rear Derailleur
    Shimano XT M8100 SGS Shadow Plus.
  • Chain
    KMC X12.
  • Handlebar
    Alloy, 31.8mm, Rise 12mm, 700mm.
  • Stem
    Alloy forged, -6º, ICR.
  • Brakes
    Magura MT5 E-STOP Hydraulic Disk Easy Route Connection.
  • Wheels
    Alloy, Tubeless, 700c, 21c, 32H.
  • Tires
    Kenda K1052 700x45C Reflective type TLR.
  • Front Wheel Axle
    Orbea Thru Axle 12x100mm M12x2 P1 Hollow.
  • Pedals
    VP-537 Black.
  • Rear Carrier
    Orbea Vibe rear luggage carrier (Max:15Kg).
  • Carrier Accessories
    Orbea, Carrier side bag, backpack convertible with inner computer bag. 15l, waterproof, reflective.
  • Mudguard
    CURANA Apollo 55mm.
  • Front Position Light
    Front position light, on head tube, COB Led, On/Off, 60 Lumen, ECE50.
  • Front Light
    Lezyne Ebike POWER STVZO PRO E115 inverted position with remote 310 lumens.
  • Rear Light
    Lezyne FENDER STVZO.
  • Quick Stand
    MASSLOAD rear.
  • Bell
    Knog OI Classic.
  • Seatpost
    Alloy, 27.2mm, Setback 20.
  • Saddle
    Brooks Cambium C15 283x140.
  • Grips
    Brooks Comfort Cambium 130mm.
  • Additional Features
    KIT TUBELESS.
