The many faces of joy
The many faces of joy
Orbea

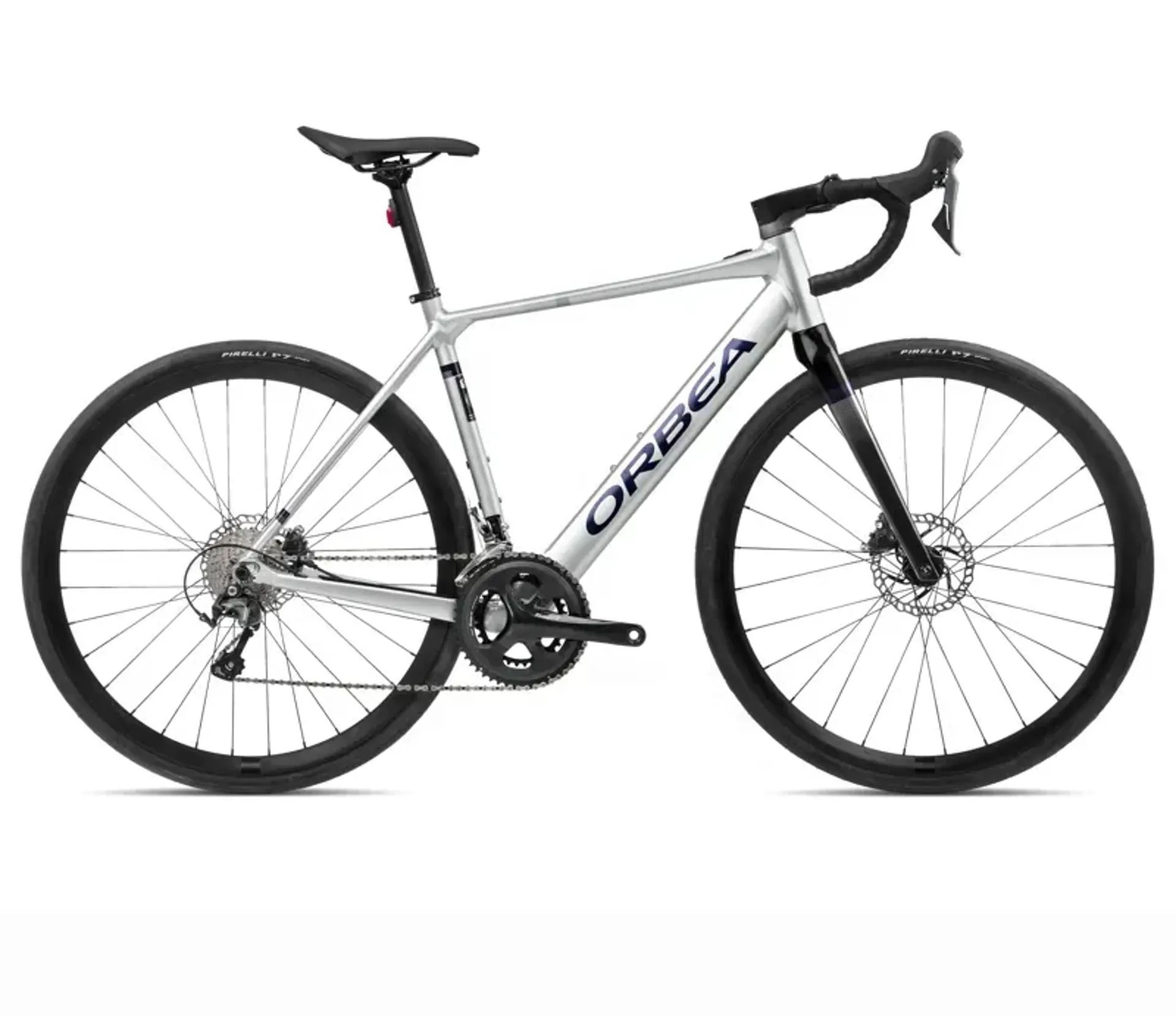

Orbea Gain D40 20mph E-Road Bike In Metallic Silver Matt/Black Gloss

$3,699.00
Size Guide
Orbea Gain D40 20mph E-Road Bike In Borealis Blue Gloss/Black Matt Orbea Gain D40 20mph E-Road Bike In Mango Gloss/Black Matt
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Shipping & Collection Dates

Estimated Shipping & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Shipping & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

Orbea Gain D40 20mph E-Road Bike In Metallic Silver Matt/Black Gloss

Season:2024

Brand:Orbea

Code:R612TTCCD3

The many faces of joy

Rider and bike working in perfect synergy, you are breathing hard and your heart is pumping but you are in control and having fun. This isn’t about riding faster, it isn’t even about riding further, this is just about having more fun each and every time you ride.

Features:

  • 250WH Downtube - Gain Aluminum uses the 250Wh downtube design, providing you with enough battery power for most rides. The range extender fits neatly in the frame´s water bottle and offers an additional 208Wh, which means a 70% boost in range.
  • More capable than ever - Clearance for 35mm tires means that Gain matches your vision of e-road, even if that goes further than tarmac and onto some gravel.
  • ICR Plus - Cables are carefully guided along the best path under the stem and through the head tube, with no rub or rattle, and are optimized for both traditional and electronic shifting systems.
Technical Information
  • Frame
    Orbea Gain Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, safety screw, 135x9 QR, Flat Mount disk mount, 700x40 maximum tire, 1" 1/2 semi-integrated headset, 41x86,5 Pressfit bottom bracket.
  • Fork
    Gain Hydro carbon fork, full carbon, 1-1/8" - 1.5" tapered head tube compatible, 700x40 maximum tire, flat mount disk mount, Thru axle 12x100mm.
  • Steerer Tube
    Acros Alloy 1-1/2" Internal Cable Routing.
  • Ebike Battery
    Mahle 36V/6.9A 248Wh ANT+.
  • Range Extender
    N/A.
  • Motor
    Mahle motor hub X35 Plus 20mph.
  • Display
    Mahle Pulsar One monochrome ANT+ LEV.
  • Charger
    Mahle X35.
  • Remote
    Mahle iWoc ONE.
  • Crankset
    Shimano Tiagra 4700 34x50t.
  • Shifters
    Shimano Tiagra ST-4770.
  • Cassette
    Shimano Tiagra HG-500 11-32t 10-Speed.
  • Rear Derailleur
    Shimano Tiagra 4700 GS.
  • Front Derailleur
    Shimano Tiagra 4700.
  • Chain
    KMC X10.
  • Handlebar
    OC Road Performance RP31, Reach 80, Drop 125.
  • Stem
    OC Road Performance RP21, -6º.
  • Brakes
    Shimano Tiagra 4770 Hydraulic Disk.
  • Wheels
    Alloy, Tubeless, 700c, 21c, 32H.
  • Tires
    Pirelli P7™ Sport 700x32c.
  • Front Wheel Axle
    Orbea Thru Axle 12x100mm M12x2 P1 Hollow.
  • Seatpost
    Alloy, 27.2mm, Setback 0, for integrated light.
  • Saddle
    Fizik Aliante R5.
  • Front Light
    Front position light, on display holder, COB Led, On/Off, 60 Lumen, ECE50.
  • Rear Light
    Lezyne FENDER STVZO seatpost mounting 11 lumens.
  • Handlebar Tape
    Orbea Eva.
Sizing Information
