Orbea DIEM 20 28mph E-Hybrid Bike In Glitter Gray Gloss

$4,699.00
Size Guide
Orbea DIEM 20 28mph E-Hybrid Bike In Ivory White Gloss Orbea DIEM 20 28mph E-Hybrid Bike In Spaceship Green Matt
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Shipping & Collection Dates

Estimated Shipping & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Shipping & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

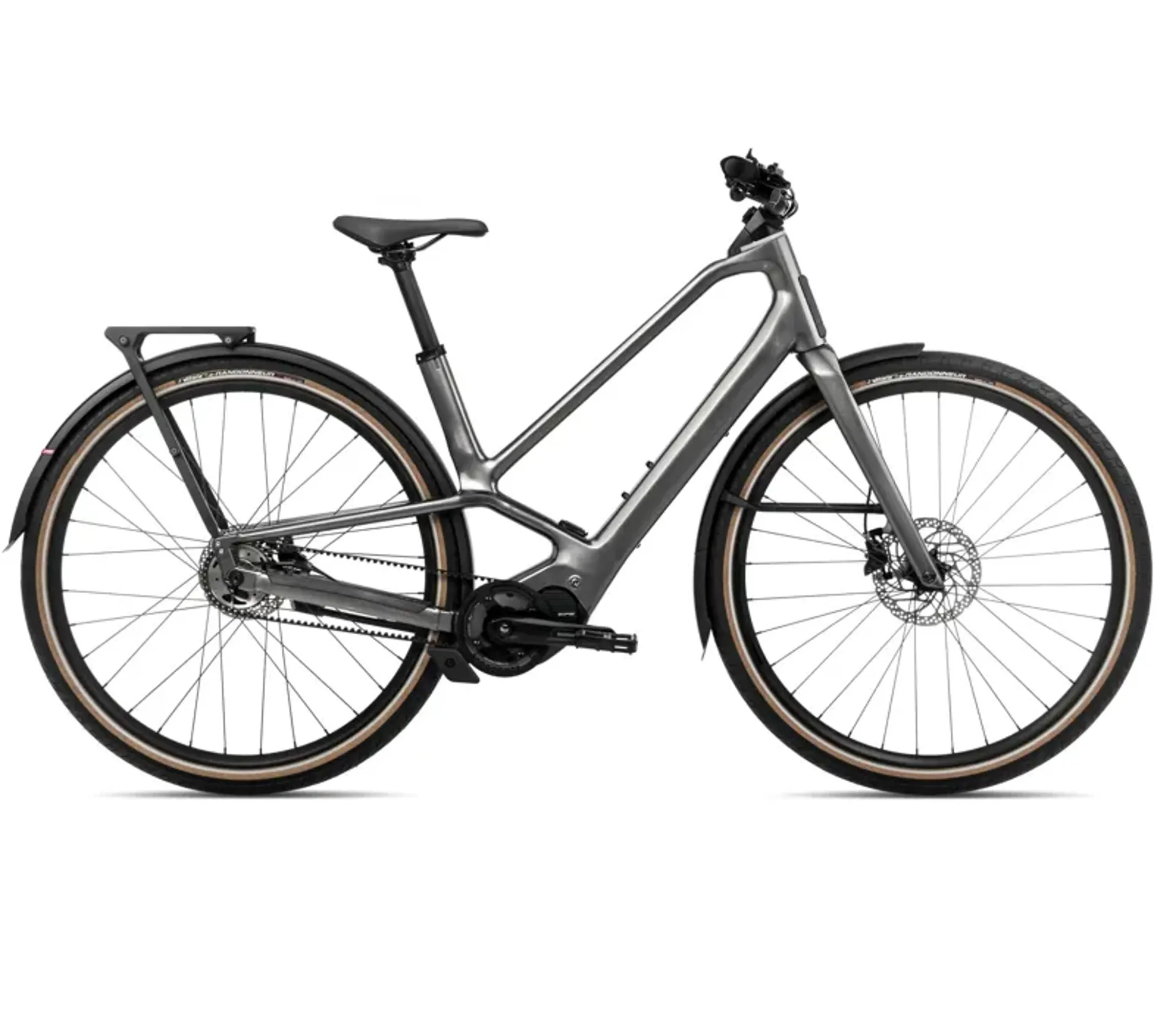

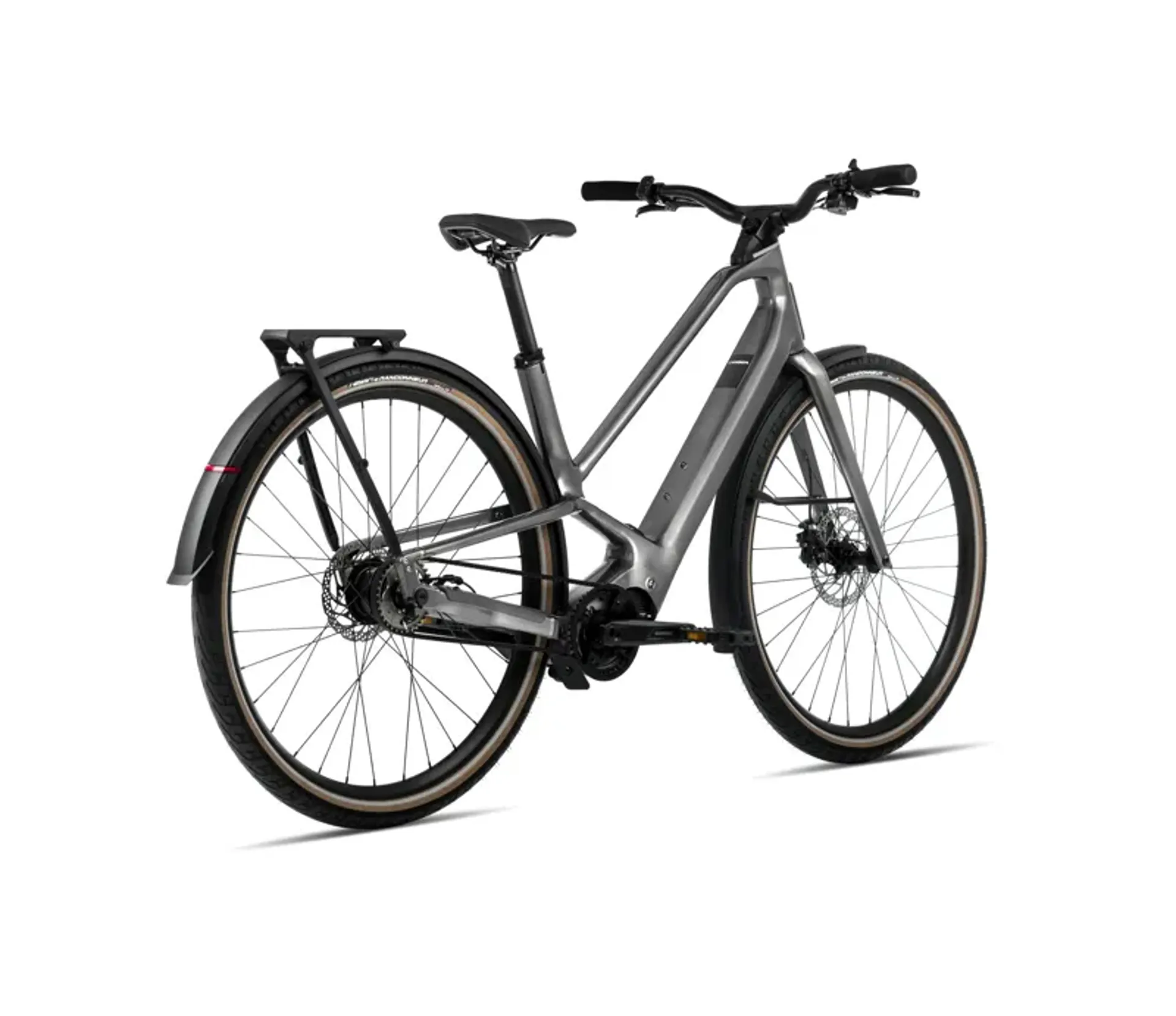

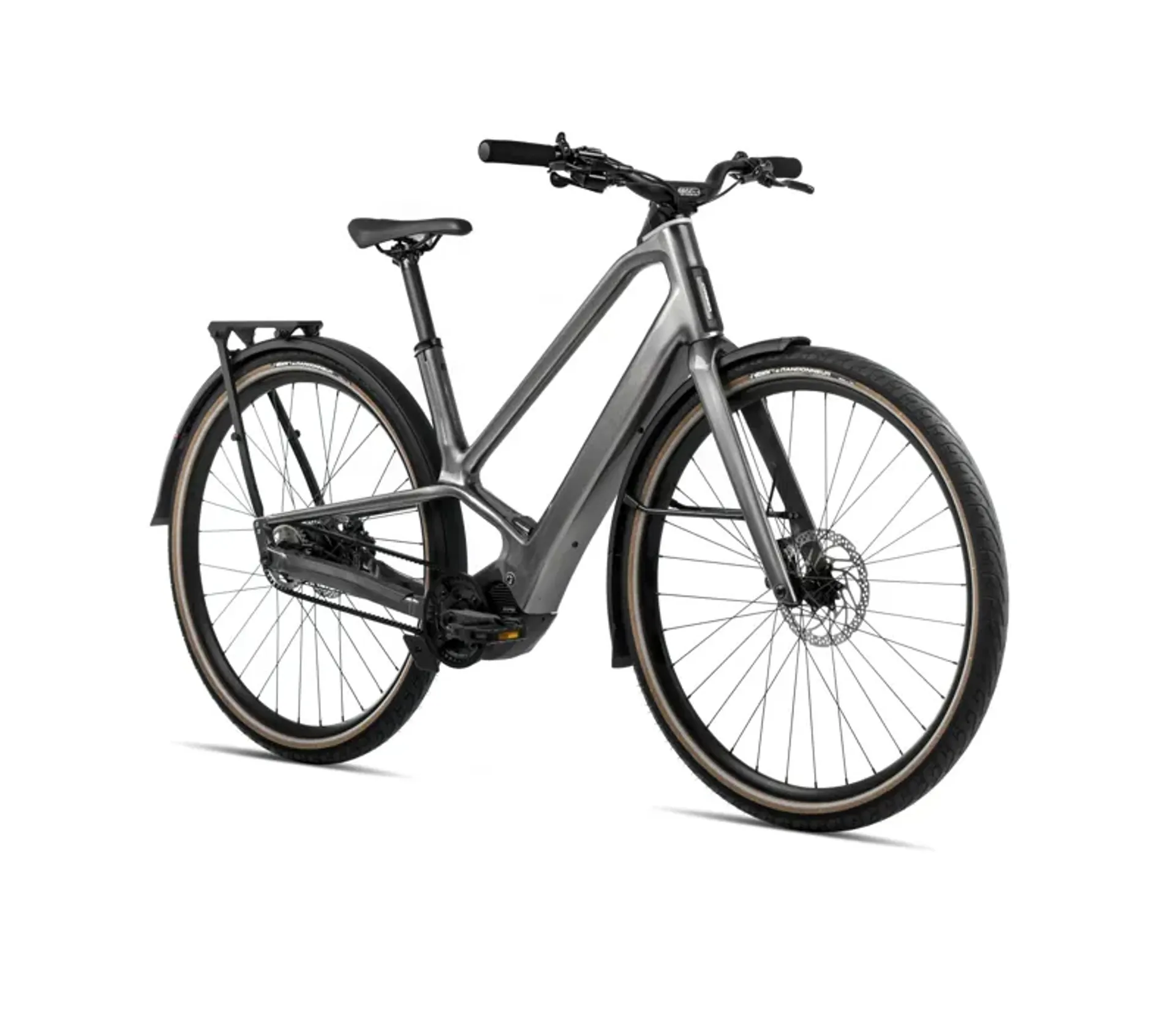

Orbea DIEM 20 28mph E-Hybrid Bike In Glitter Gray Gloss

Season:2025

Brand:Orbea

Code:S691TTCCWR

The new A to B

A to B should be a pleasure, not a chore. Diem is a powerful Urban Ebike you can count on, a trusty partner that brings a touch of class to the day-to-day.

Features:
  • Hub gears and belt drive - Shimano´s Inter-5 hub makes life simple, with 5 gears. Together with the Gates belt drive, it adds up to a silent, low maintenance drivetrain.
  • Endless power. Intelligent control - The Shimano EP motor matched with our 630Wh battery makes the steepest streets and heaviest loads a breeze.
  • The smoothest ride - The combination of the carbon fork, wider tires and our patented Diamond Glide frame design helps absorb bumps, giving a controlled ride on rougher streets.
  • Intelligent lighting system - The high-tech lighting system switches on automatically to keep you safe and light the way ahead. The wrap around lights make sure you are always visible, day or night, even from the side.
  • Packed with clever features - Unique, custom accessories designed to work perfectly with Diem to make your day to day a little better.
Technical Information
  • Frame
    Orbea Diem Hydro High Polished 2024, Flex Tech, 135x9 / 142x12, Headset Routing, Custom Kickstand, Orbea Urban Cockpit and equipment compatible
  • Fork
    Orbea Diem carbon fork, full carbon, 1" 1/8 - 1" 1/5 , post mount disk mount, Thru Axle 12x100mm, thread M12x1. Long mudguards compatible.
  • Steerer Tube
    FSA 1-1/2" Integrated Aluminum Cup
  • Battery
    Orbea Internal 630Wh
  • Range Extender
    N/A
  • Motor
    Shimano EP600
  • Charger
    Orbea 2.Generation eBike Smart charger 42V/2-4A
  • Remote
    EN600-L
  • Chainring
    Gates CDX 46t w/chainguard
  • Crank
    Shimano Steps EM600
  • Shifters
    Microshift TN71 for Nexus Inter 5
  • Cassette
    Gates CDX 30t for Shimano Inter 5e
  • Rear Derailleur
    Shimano Nexus Inter-5
  • Chain
    Gates CDX Belt
  • Handlebar
    Orbea Urban, Integrated Light, Rise 54, Width 700
  • Brakes
    Shimano MT201 Hydraulic Disk
  • Brakes Configuration
    N/A
  • Wheels
    Alloy, Tubeless, 25c, 32H
  • Tires
    Vittoria e-Randonneur 50-622, Reflective band
  • Pedals
    VP-537 Black
  • Front Carrier
    N/A
  • Rear Carrier
    Orbea RR-01 Alloy, w/Mik & Mik Side and Ortlieb QL3.1 system. Max. 20Kg
  • Mudguard
    Curana Apollo Orbit 60mm
  • Front Position Light
    Orbea integrated, USB-C charging point
  • Front Light
    Supernova Starstream Pro, High Beam
  • Rear Light
    Orbea Fender integrated, with alert light
  • Chainguard
    Gates CDS
  • Quick Stand
    Orbea Diem Integrated
  • Bell
    Knog OI Classic
  • Seatpost
    Alloy 31.6x300mm Offset 0
  • Saddle
    Selle Royal Vivo Ergo
